Click here to run this tutorial on binder:# Tutorial: Linear time-invariant systems¶

In this tutorial, we discuss finite-dimensional, continuous-time, linear time-invariant (LTI) systems of the form

where
\(u\) is the input,
\(x\) the state, and
\(y\) the output of the system,
and \(A, B, C, D, E\) are matrices of appropriate dimensions
(more details can be found in [Ant05]).
In pyMOR, these models are captured by `LTIModels`

,
which contain the matrices \(A, B, C, D, E\) as `Operators`

.
We start by building an `LTIModel`

and then demonstrate some of its properties,
using a discretized heat equation as the example.

We focus on a non-parametric example,
but parametric LTI systems can be handled similarly
by constructing \(A, B, C, D, E\) as parametric `Operators`

and
passing `parameter values`

via the `mu`

argument to the methods of the
`LTIModel`

.

Note

Discrete-time LTI systems can be constructed by passing positive values for the
`sampling_time`

to any constructor of an `LTIModel`

.

## Building a model¶

We consider the following one-dimensional heat equation over \((0, 1)\) with two inputs \(u_1, u_2\) and three outputs \(y_1, y_2, y_2\):

There are many ways of building an `LTIModel`

.
Here, we show how to build one from custom matrices,
instead of using a discretizer as in Tutorial: Using pyMOR’s discretization toolkit
(and the `to_lti`

method of
`InstationaryModel`

to obtain an `LTIModel`

).
In particular, we will use the
`from_matrices`

method of `LTIModel`

,
which instantiates an `LTIModel`

from NumPy or SciPy matrices.

First, we do the necessary imports and some matplotlib style choices.

```
import matplotlib.pyplot as plt
import numpy as np
import scipy.sparse as sps
from pymor.models.iosys import LTIModel
plt.rcParams['axes.grid'] = True
```

Next, we can assemble the matrices based on a centered finite difference approximation using standard methods of NumPy and SciPy.

```
import numpy as np
import scipy.sparse as sps
k = 50
n = 2 * k + 1
E = sps.eye(n, format='lil')
E[0, 0] = E[-1, -1] = 0.5
E = E.tocsc()
d0 = n * [-2 * (n - 1)**2]
d1 = (n - 1) * [(n - 1)**2]
A = sps.diags([d1, d0, d1], [-1, 0, 1], format='lil')
A[0, 0] = A[-1, -1] = -n * (n - 1)
A = A.tocsc()
B = np.zeros((n, 2))
B[:, 0] = 1
B[0, 0] = B[-1, 0] = 0.5
B[0, 1] = n - 1
C = np.zeros((3, n))
C[0, :n//3] = C[1, n//3:2*n//3] = C[2, 2*n//3:] = 1
C /= C.sum(axis=1)[:, np.newaxis]
```

Then, we can create an `LTIModel`

from NumPy and SciPy matrices `A`

, `B`

, `C`

,
`E`

.

```
fom = LTIModel.from_matrices(A, B, C, E=E)
```

We can take a look at the internal representation of the `LTIModel`

`fom`

.

```
fom
```

```
LTIModel(
NumpyMatrixOperator(<101x101 sparse, 301 nnz>),
NumpyMatrixOperator(<101x2 dense>),
NumpyMatrixOperator(<3x101 dense>),
D=ZeroOperator(NumpyVectorSpace(3), NumpyVectorSpace(2)),
E=NumpyMatrixOperator(<101x101 sparse, 101 nnz>),
presets={})
```

From this, we see that the matrices were wrapped in `NumpyMatrixOperators`

,
while the default value was chosen for the \(D\) matrix
(`ZeroOperator`

).
The operators in an `LTIModel`

can be accessed via its attributes, e.g.,
`fom.A`

is the `Operator`

representing the \(A\) matrix.

We can also see some basic information from `fom`

’s string representation

```
print(fom)
```

```
LTIModel
class: LTIModel
number of equations: 101
number of inputs: 2
number of outputs: 3
continuous-time
linear time-invariant
solution_space: NumpyVectorSpace(101)
```

which gives the dimensions of the underlying system more directly, together with some of its properties.

## Time-domain simulation¶

The `solve`

and `output`

methods can be used to respectively compute the
solution and output trajectories.
For this, it is necessary to set the final time and the time-stepper.
This could have been done in the `from_matrices`

call.
Instead of creating a new model using `from_matrices`

,
we can redefine `fom`

using its `with_`

method.

```
from pymor.algorithms.timestepping import ImplicitEulerTimeStepper
fom = fom.with_(T=4, time_stepper=ImplicitEulerTimeStepper(200))
```

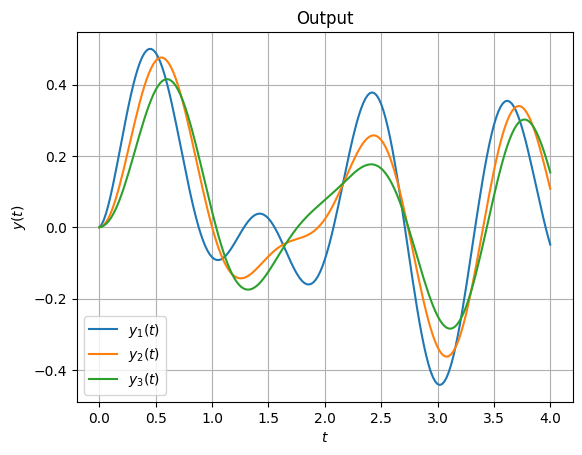

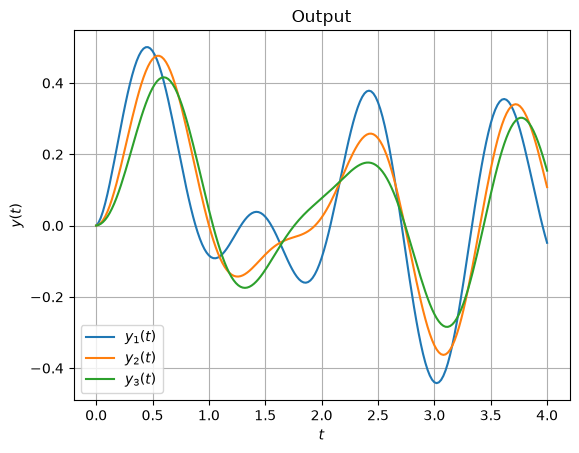

With this done, we can compute the output for some given input and plot it.

```
Y = fom.output(input='[sin(4 * t[0]), sin(6 * t[0])]')
fig, ax = plt.subplots()
for i, y in enumerate(Y.T):
ax.plot(np.linspace(0, fom.T, fom.time_stepper.nt + 1), y, label=f'$y_{i+1}(t)$')
_ = ax.set(xlabel='$t$', ylabel='$y(t)$', title='Output')
_ = ax.legend()
```

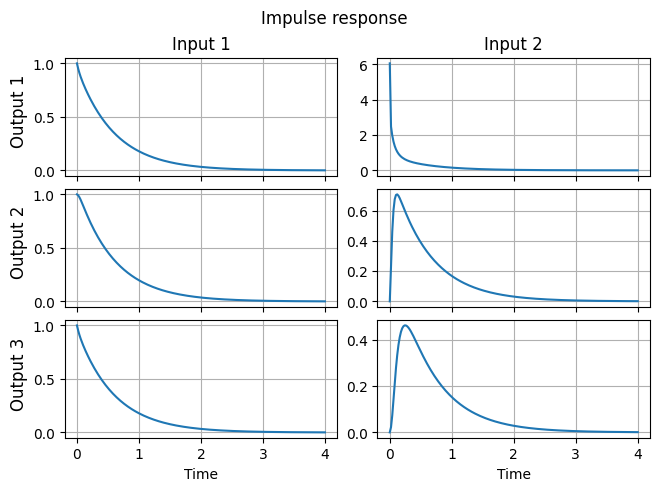

Additionally, there are the `impulse_resp`

and `step_resp`

methods for computing
the impulse and step responses, respectively.

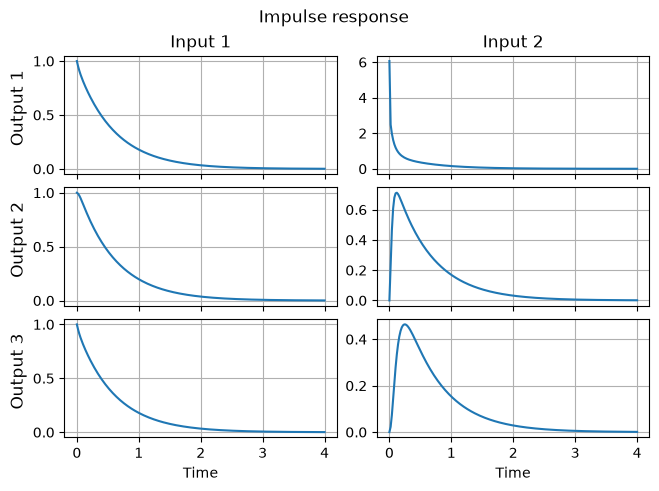

Impulse response for continuous-time LTI systems is given by

where \(\delta\) is the Dirac function.

For computations, we ignore the \(D\) term and compute the first part by integrating the ODE system

for canonical basis vectors \(e_i\) to get the \(i\)-th column of \(h_i(t) = C x_i(t)\).

```
y_impulse = fom.impulse_resp()
fig, ax = plt.subplots(fom.dim_output, fom.dim_input, sharex=True, constrained_layout=True)
for i in range(fom.dim_output):
for j in range(fom.dim_input):
ax[i, j].plot(np.linspace(0, fom.T, y_impulse.shape[0]), y_impulse[:, i, j])
for i in range(fom.dim_output):
ax[i, 0].set_title(f'Output {i + 1}', loc='left', rotation='vertical', x=-0.2, y=0.2)
for j in range(fom.dim_input):
ax[0, j].set_title(f'Input {j + 1}')
ax[-1, j].set_xlabel('Time')
_ = fig.suptitle('Impulse response')
```

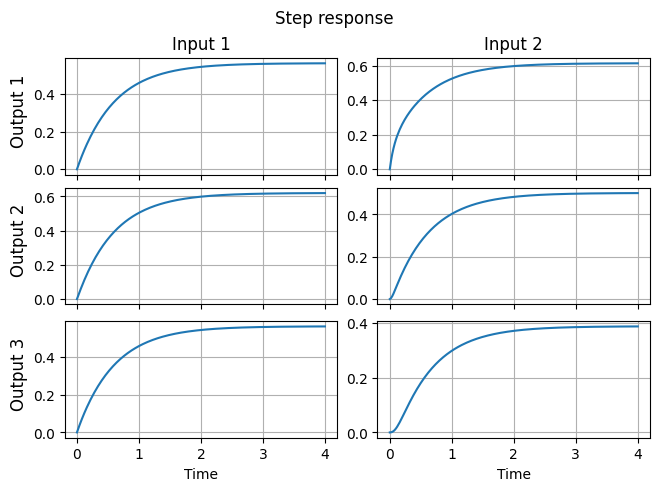

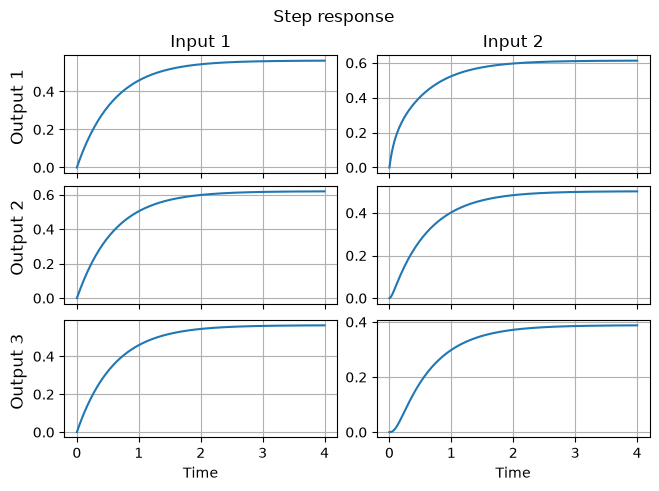

Step response for continuous-time LTI systems is the output corresponding to the zero initial condition and inputs \(u_i(t) = e_i\).

```
y_step = fom.step_resp()
fig, ax = plt.subplots(fom.dim_output, fom.dim_input, sharex=True, constrained_layout=True)
for i in range(fom.dim_output):
for j in range(fom.dim_input):
ax[i, j].plot(np.linspace(0, fom.T, y_step.shape[0]), y_step[:, i, j])
for i in range(fom.dim_output):
ax[i, 0].set_title(f'Output {i + 1}', loc='left', rotation='vertical', x=-0.2, y=0.2)
for j in range(fom.dim_input):
ax[0, j].set_title(f'Input {j + 1}')
ax[-1, j].set_xlabel('Time')
_ = fig.suptitle('Step response')
```

## Transfer function evaluation¶

The transfer function \(H\) is the function such that \(Y(s) = H(s) U(s)\), where \(U\) and \(Y\) are respectively the Laplace transforms of the input \(u\) and the output \(y\), assuming zero initial condition (\(x(0) = 0\)). The expression for \(H\) can be found by applying the Laplace transform to the system equations to obtain

using that \(s X(s)\) is the Laplace transform of \(\dot{x}(t)\). Eliminating \(X(s)\) leads to

i.e., \(H(s) = C (s E - A)^{-1} B + D\). Note that \(H\) is a matrix-valued rational function (each component is a rational function).

The transfer function of a given `LTIModel`

is stored as the attribute
`transfer_function`

.
It can be evaluated using its
`eval_tf`

method.
The result is a NumPy array.

```
print(fom.transfer_function.eval_tf(0))
print(fom.transfer_function.eval_tf(1))
print(fom.transfer_function.eval_tf(1j))
```

```
[[0.56266667 0.61333333]
[0.620175 0.50166667]
[0.564075 0.38833333]]
[[0.35516035 0.42800414]
[0.39053974 0.30625375]
[0.35602872 0.21798312]]
[[0.41916591-0.24498821j 0.49022668-0.21786001j]
[0.46133002-0.27112399j 0.36609293-0.23081817j]
[0.42019995-0.24562591j 0.26612665-0.20191321j]]
```

Similarly, the derivative of the transfer function can be computed using the
`eval_dtf`

method.
The result is again a NumPy array.

```
print(fom.transfer_function.eval_dtf(0))
print(fom.transfer_function.eval_dtf(1))
print(fom.transfer_function.eval_dtf(1j))
```

```
[[-0.32905051 -0.28965578]
[-0.36417571 -0.31024153]
[-0.32990749 -0.27380581]]
[[-0.13086074 -0.11936496]
[-0.14479475 -0.12300531]
[-0.1312008 -0.10527819]]
[[-0.1198173 +0.21367653j -0.11093146+0.18362116j]
[-0.13256763+0.23652374j -0.11255455+0.20186916j]
[-0.12012849+0.21423385j -0.09488566+0.18167128j]]
```

To evaluate the transfer function over a sequence of points on the imaginary
axis,
the `freq_resp`

method
can be used.
A typical use case is plotting the transfer function,
which is discussed in the next section.

## Magnitude and Bode plots¶

It is known that if the input is chosen as \(u(t) = a e^{\xi t} \sin(\omega t + \varphi) e_j\) (where \(e_j\) is the \(j\)-th canonical vector), then

In words, if the input is a pure exponential, the frequency is preserved in the output, the amplitude is multiplied by the amplitude of the transfer function, and the phase is shifted by the argument of the transfer function. In particular, if the input is sinusoidal, i.e., \(\xi = 0\), then the output is also sinusoidal.

It is of interest to plot the transfer function over the imaginary axis to visualize how the LTI system responds to each frequency in the input. Since the transfer function is complex-valued (and matrix-valued), there are multiple ways to plot it.

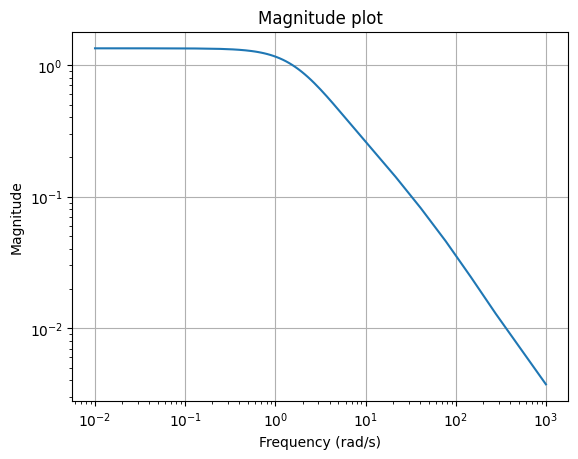

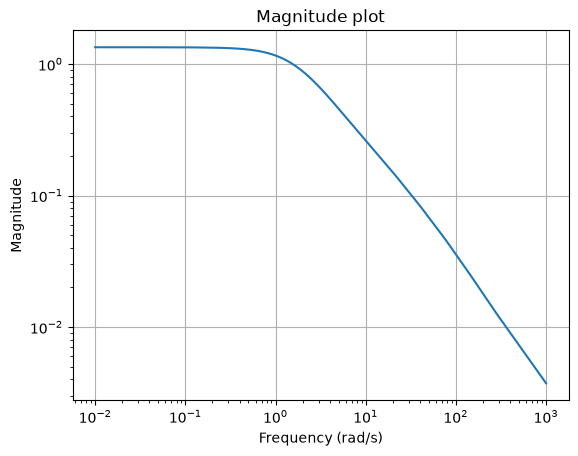

One way is the “magnitude plot”, a visualization of the mapping
\(\omega \mapsto \lVert H(\boldsymbol{\imath} \omega) \rVert\),
using the `mag_plot`

method.

```
w = (1e-2, 1e3)
_ = fom.transfer_function.mag_plot(w)
```

Note that `mag_plot`

computes the Frobenius norm of \(H(\boldsymbol{\imath} \omega)\) by default,
just as `scipy.linalg.norm`

.
Likewise, the choice of the norm \(\lVert \cdot \rVert\) can be controlled
using the `ord`

parameter.

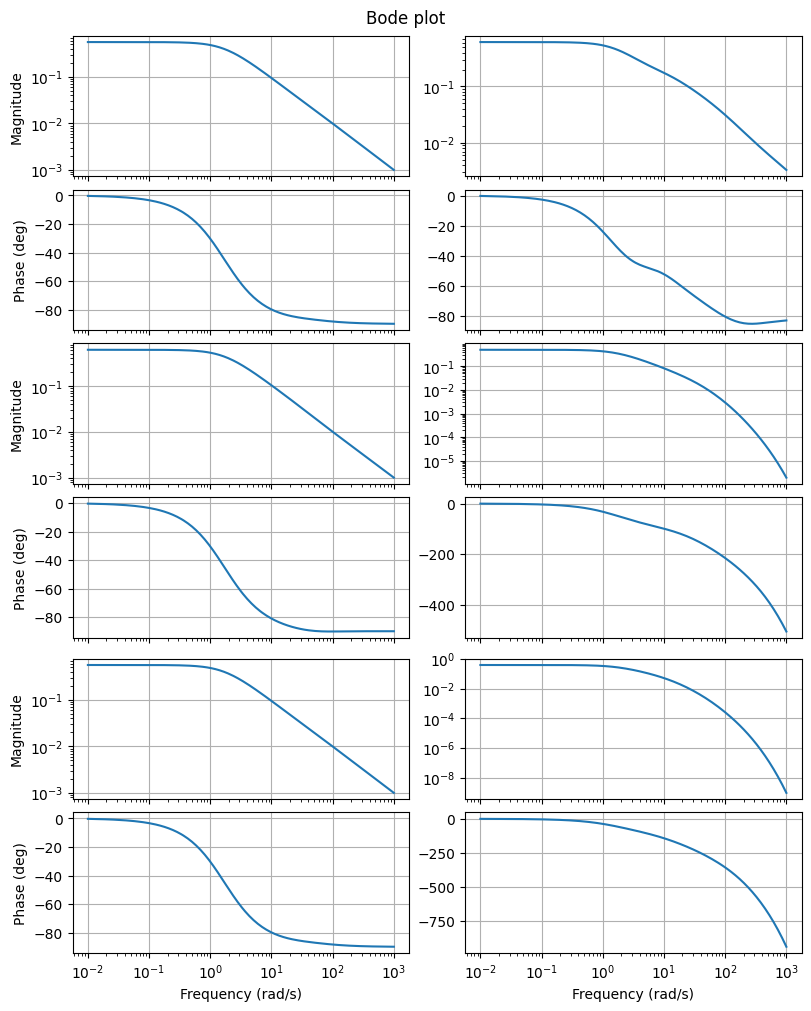

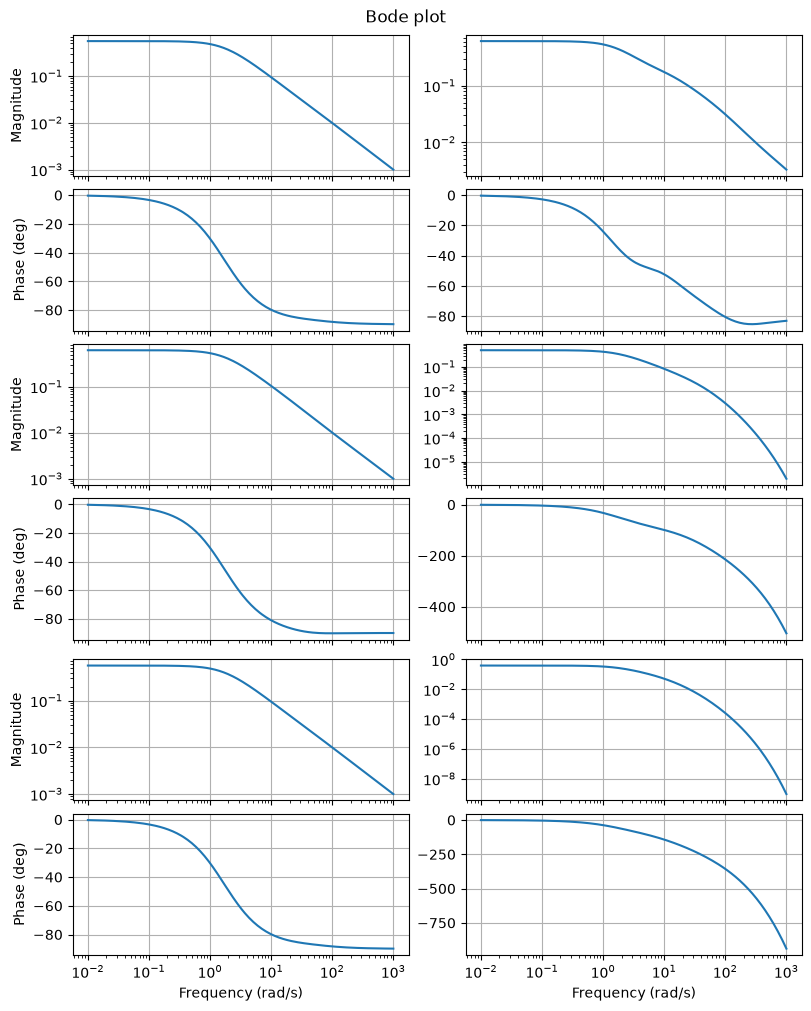

Another visualization is the Bode plot, which shows the magnitude and phase of each component of the transfer function. More specifically, \(\omega \mapsto \lvert H_{ij}(\boldsymbol{\imath} \omega) \rvert\) is in subplot \((2 i - 1, j)\) and \(\omega \mapsto \arg(H_{ij}(\boldsymbol{\imath} \omega))\) is in subplot \((2 i, j)\).

```
fig, axs = plt.subplots(6, 2, figsize=(8, 10), sharex=True, constrained_layout=True)
_ = fom.transfer_function.bode_plot(w, ax=axs)
```

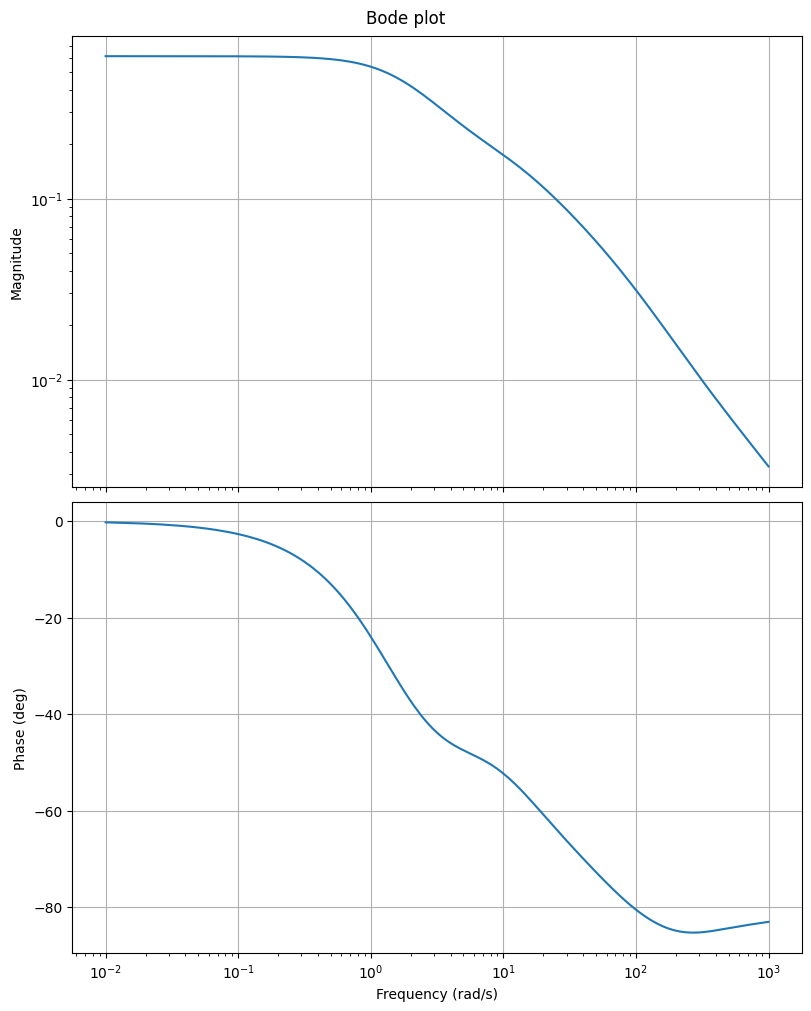

To restrict which inputs and outputs are plotted by `bode_plot`

,
its parameters `input_indices`

and `output_indices`

can be used.

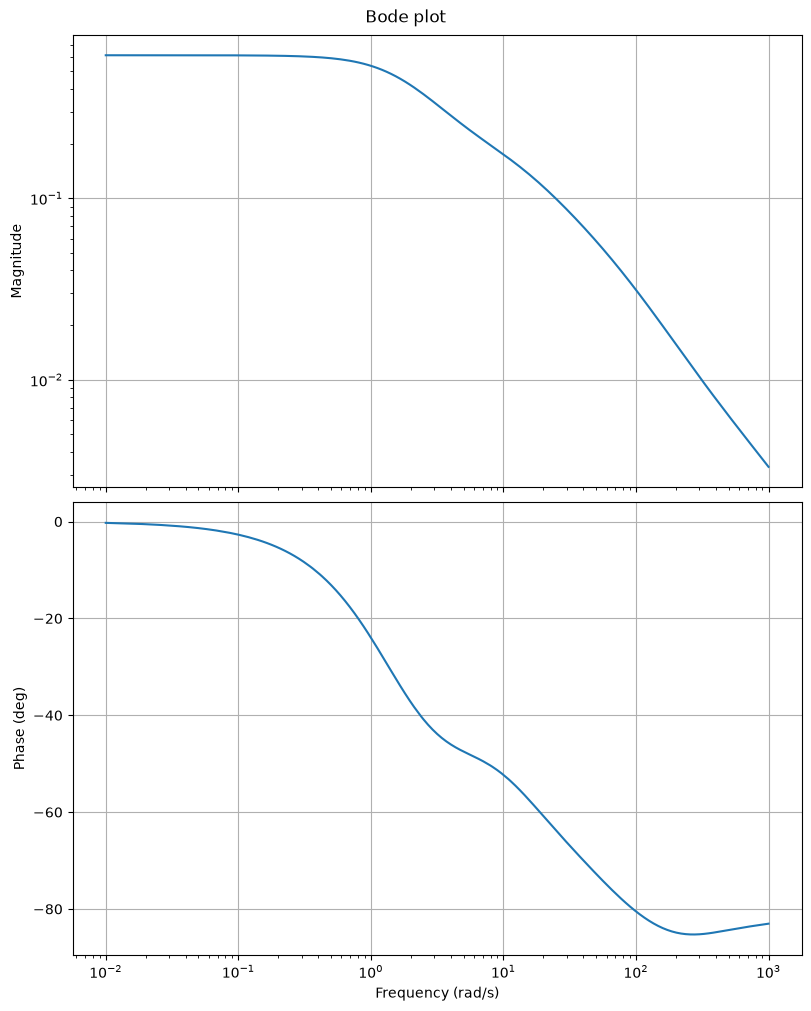

The following restricts the plot to the second input \(u_2\) and the first output \(y_1\).

```
fig, axs = plt.subplots(2, 1, figsize=(8, 10), sharex=True, constrained_layout=True)
_ = fom.transfer_function.bode_plot(w, ax=axs, input_indices=[1], output_indices=[0])
```

Note the change in the `axs`

shape compared to the first call to `bode_plot`

.

## System poles¶

The poles of an LTI system are the poles of its transfer function. From the form of the transfer function it follows that the poles are eigenvalues of \(E^{-1} A\), assuming that \(E\) is invertible. Conversely, the eigenvalues of \(E^{-1} A\) are the poles of the system in the generic case (more precisely, if the system is minimal, i.e., controllable and observable; see [Ant05]).

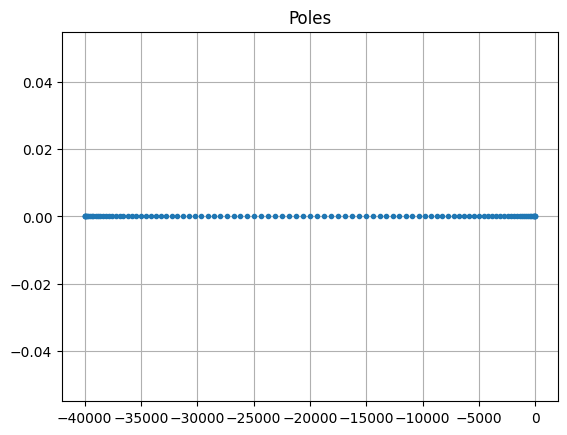

The poles of an `LTIModel`

can be obtained using its
`poles`

method
(assuming the system is minimal).

```
poles = fom.poles()
fig, ax = plt.subplots()
ax.plot(poles.real, poles.imag, '.')
_ = ax.set_title('Poles')
```

Note

The `poles`

method uses a dense
eigenvalue solver,
which is applicable only up to medium-sized problems.

## System Gramians¶

The controllability and observability Gramians of an asymptotically stable system with invertible \(E\) are respectively

From this, it is clear that \(P\) and \(Q\) are symmetric positive semidefinite. Furthermore, it can be shown that \(P\) and \(Q\) are solutions to Lyapunov equation

The Gramians can be used to quantify how much does the input influence the state (controllability) and state the output (observability). This is used to motivate the balanced truncation method (see Tutorial: Reducing an LTI system using balanced truncation). Also, they can be used to compute the \(\mathcal{H}_2\) norm (see below).

To find the “Gramians” \(P\) and \(Q\) of an `LTIModel`

,
the `gramian`

method can be used.
Although solutions to Lyapunov equations are generally dense matrices,
they can be often be very well approximated by a low-rank matrix.
With `gramian`

,
it is possible to compute the dense solution or only the low-rank Cholesky
factor.
For example, the following computes the low-rank Cholesky factor of the
controllability Gramian as a `VectorArray`

:

```
fom.gramian('c_lrcf')
```

```
NumpyVectorArray(
NumpyVectorSpace(101),
[[-9.67050759e-01 -9.49603788e-01 -9.37818152e-01 ... -5.08356138e-01
-5.03442167e-01 -4.98481264e-01]
[-1.13133419e+00 -9.59580542e-01 -8.43810516e-01 ... 1.94699113e-01
1.92880555e-01 1.91000976e-01]
[ 9.08538963e-01 4.58145972e-01 2.24375612e-01 ... 9.25753046e-02
9.17614570e-02 9.08841977e-02]
...
[-1.88066349e-17 7.19583179e-16 -1.21874623e-14 ... -2.60457725e-10
5.25079692e-11 -5.60357342e-12]
[-1.27759390e-17 5.97562424e-16 -1.26245456e-14 ... -9.03505971e-11
1.92332746e-11 -2.14568574e-12]
[-2.09370865e-18 9.04554742e-17 -1.77181144e-15 ... -4.79232071e-12
1.40112827e-12 -1.83206433e-13]],
_len=101)
```

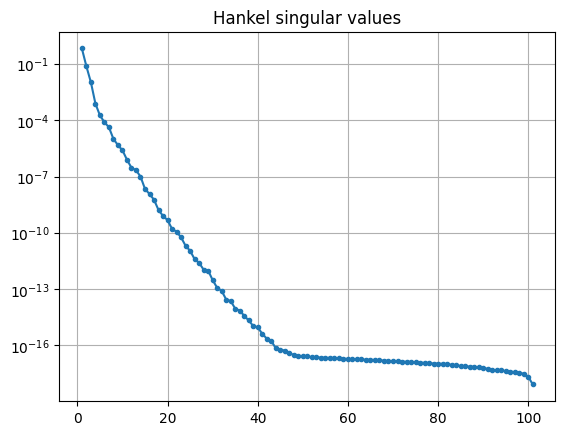

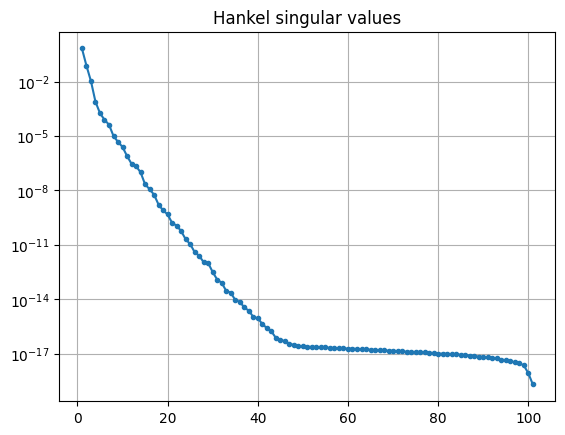

## Hankel singular values¶

The Hankel singular values of an LTI system are \(\sigma_i = \sqrt{\lambda_i(E^{\operatorname{T}} Q E P)}\), where \(\lambda_i\) is the \(i\)-th eigenvalue.

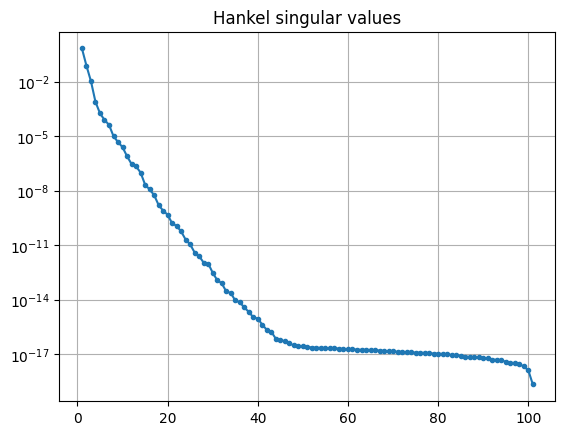

Plotting the Hankel singular values shows us how well an LTI system can be
approximated by a reduced-order model.
The `hsv`

method can be used to compute them.

```
hsv = fom.hsv()
fig, ax = plt.subplots()
ax.semilogy(range(1, len(hsv) + 1), hsv, '.-')
_ = ax.set_title('Hankel singular values')
```

As expected for a heat equation, the Hankel singular values decay rapidly.

## System norms¶

There are various system norms, used for quantifying the sensitivity of system’s outputs to its inputs. pyMOR currently has methods for computing: the \(\mathcal{H}_2\) norm, the \(\mathcal{H}_\infty\) norm, and the Hankel (semi)norm.

The \(\mathcal{H}_2\) norm is (if \(E\) is invertible, \(E^{-1} A\) has eigenvalues in the open left half plane, and \(D\) is zero)

It can be shown that

Additionally, for systems with a single input or a single output (i.e., \(u(t) \in \mathbb{R}\) or \(y(t) \in \mathbb{R}\)),

The computation of the \(\mathcal{H}_2\) norm is based on the system Gramians

The `h2_norm`

method of an `LTIModel`

can be
used to compute it.

```
fom.h2_norm()
```

```
np.float64(1.314881964064963)
```

The \(\mathcal{H}_\infty\) norm is (if \(E\) is invertible and \(E^{-1} A\) has eigenvalues in the open left half plane)

It is always true that

and, in particular,

The `hinf_norm`

method uses a dense solver
from Slycot to compute the
\(\mathcal{H}_\infty\) norm.

```
fom.hinf_norm()
```

```
np.float64(1.335114722611455)
```

The Hankel norm is (if \(E\) is invertible and \(E^{-1} A\) has eigenvalues in the open left half plane)

i.e., the largest Hankel singular value. Since it is independent of \(D\), the “Hankel norm” is only a seminorm in general.

It can be shown that the Hankel norm is the norm of the Hankel operator \(\mathcal{H} \colon \mathcal{L}_2(-\infty, 0) \to \mathcal{L}_2(0, \infty)\) mapping past inputs \(u_-\) to future outputs \(y_+\)

where \(h\) is the impulse response \(h(t) = C e^{t E^{-1} A} E^{-1} B + D \delta(t)\) (i.e., \(H\) is the Laplace transform of \(h\)). Thus,

The computation of the Hankel norm in
`hankel_norm`

relies on the
`hsv`

method.

```
fom.hankel_norm()
```

```
np.float64(0.6648253696498126)
```

Download the code:
`tutorial_lti_systems.md`

,
`tutorial_lti_systems.ipynb`

.
